X Tend Stainless Steel Cable Mesh For Balustrade Guardrail Deck Railing

Product Categories

Anping Huihao Hardware Trading Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

X Tend Stainless Steel Cable Mesh For Balustrade Guardrail Deck Railing

Certification : ISO9001-2015

Supply Ability : 30000 square meters per 10 days

Price : USD8-26/M2

Surface treatment : silver or black oxide finish

Application : Balustrade, Guardrail & Deck Railing

Packaging Details : rolls with plastic film, then put into wooden case

Mesh direction : Horizontal , Vertical

Model Number : HH-1.5mm

Mesh Size : 20mm-200mm

Place of Origin : CHINA

Construction Of Wire Cable : 7x7, 7x19

Material : stainless steel 304/316/316L

wire diameter : 1mm-6mm

MOQ : 10 square meters

Delivery Time : within 15 work days

Payment Terms : T/T,Western Union,MoneyGram

Name : x-tend stainless steel cable mesh

Customized : Frame System Design

Connection : ferrule or knotted

Contact Now

X Tend Stainless Steel Cable Mesh For Balustrade Guardrail Deck Railing

Introduction of X-tend stainless steel cable mesh:

X-Tend 304 316 Stainless Steel Cable Mesh Ferrule Wire Rope Mesh is suitable for zoo bird aviary nets, green walls, decorative wire mesh, and stair railing mesh fences. Available in two types:

Knotted mesh: Plain weave where each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
Ferruled mesh: Shares the same physical properties as knotted mesh, but stainless wire ropes are combined by ferrules made of the same grade stainless steel.

Specification of X-tend stainless steel cable mesh:

Cable Diameter	Mesh Opening Size
inch \| mm	inch \| mm
1/8 \| 3.2	2 x3.46 \| 51 x88.3
3/32 \| 2.4	2x3.46 \| 51 x 88.3
5/64 \| 2.0	2.4x 4.16 \| 60 x 104
5/64 \| 2.0	2 x 3.46 \| 51 x 88.3
5/64 \| 2.0	1-1/2 x 2.6 \| 38 x 65.8
1/16 \| 1.6	2x 3.46 \| 51 x 88.3
1/16 \| 1.6	1-1/2 x 2.6 \| 38 x 65.8
1/16 \| 1.6	1.2x2.08 \| 30 x 52
1/16 \| 1.6	1 x 1.73 \| 25.4 x 44
3/64 \| 1.2	1-1/2x2.6 \| 38 x 65.8
3/64 \| 1.2	1.2 x 2.08 \| 30 x 52
3/64 \| 1.2	1 x 1.73 \| 25.4 x 44
3/64 \| 1.2	4/5 x 1.39 \| 20 x 34.6

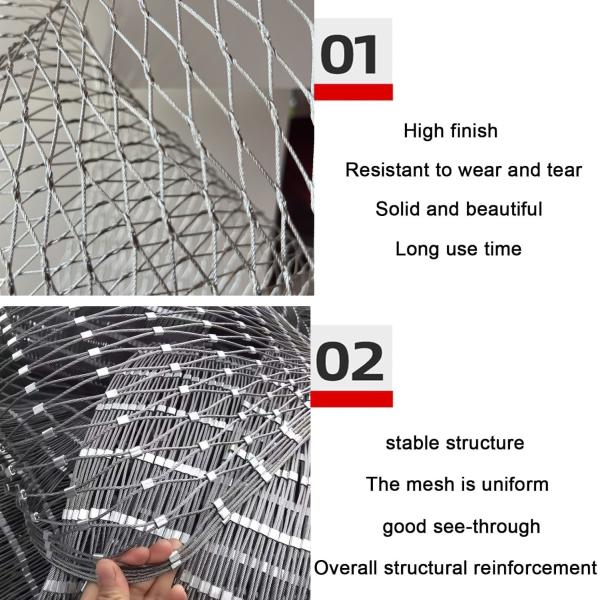

Images of X-tend stainless steel cable mesh:

X Tend Stainless Steel Cable Mesh For Balustrade Guardrail Deck Railing

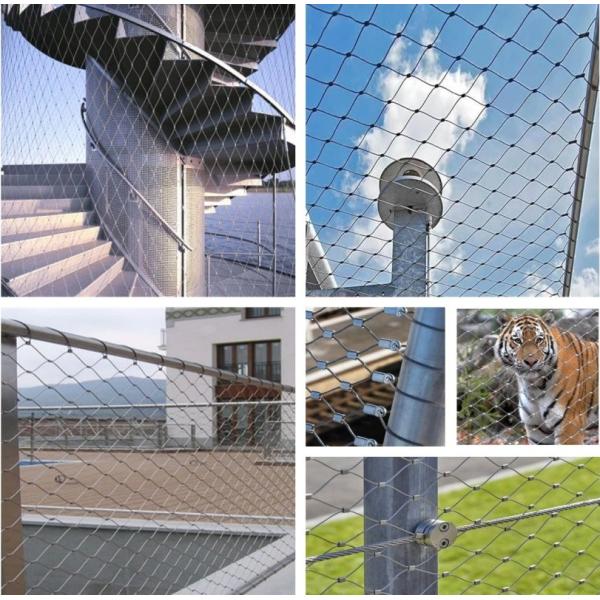

Application of X-tend stainless steel cable mesh:

Stainless steel rope wire mesh is commonly used in various applications where high strength, durability, and corrosion resistance are required. It is commonly used in architectural applications such as building facades, balustrades, and safety barriers. It is also used in zoological and aquarium zoo mesh, as well as in industrial applications such as machinery guards and conveyor belts.

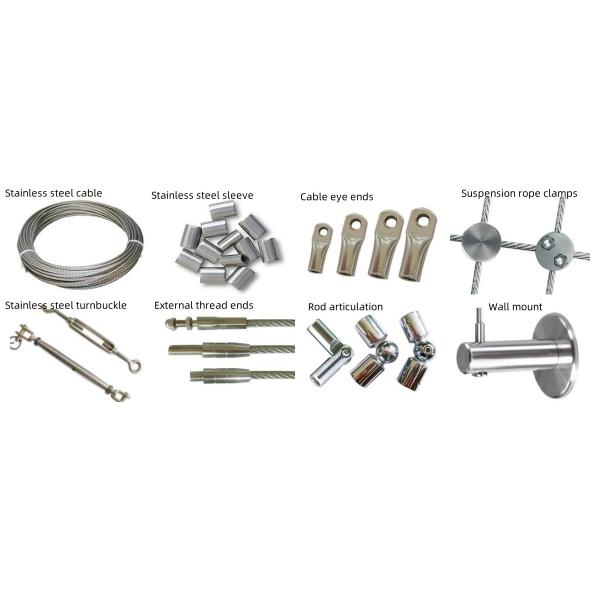

Accessories of X-tend stainless steel cable mesh:

Turnbuckles: Devices used to adjust the tension of the wire ropes in the mesh.
Eyebolts: Used to anchor the mesh to the structure or frame it is being installed on.
Clamps: Used to secure the mesh to the structure or frame, available in different shapes and sizes.
Connectors: Used to connect separate sections of mesh together.
Support cables: Additional cables that provide extra support to the mesh and can be attached to the structure or frame.

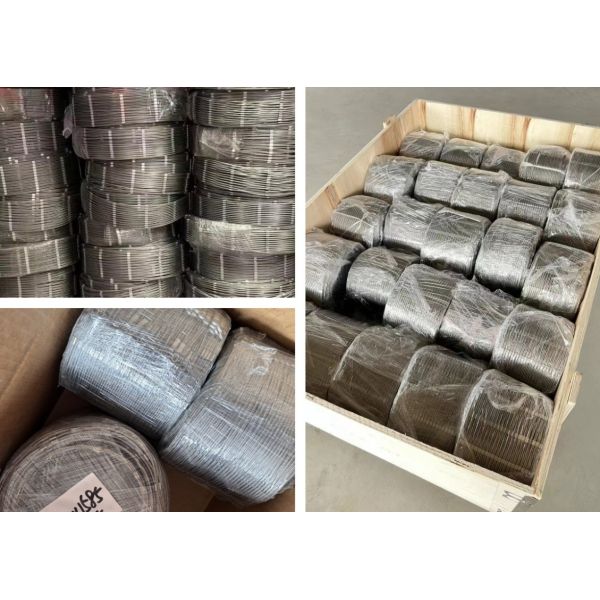

Package of Architectural Rope Mesh:

The rope mesh without frame would be packed in rolls with plastic film, then put into wooden cases.
The rope mesh with frame would be fastened on pallets.
