Durability And Flexibility Chain Mail Curtain Used In Architectural Design
Quick Details Of Chain Mail Curtain :
| Color |
copper ,brass ,metal color ,gold ,silver ect |
| Technique |
Welded or non-welded |
| Material |
Stainless steel ,brass ,copper other to be request |
| Mesh Opening |
0.53mm, 0.8mm ,1mm ,1.2mm,1.5mm,2.0mm2.5mm,3.0mm |
| Application |
architectural design |
| Size |
Max width can reach to 4000mm , length can be customized as your machine. |
Contact us for custom colors and size !
Chain Mail Curtain Specification :
| Term |
Type |
Material |
Wire diameter |
Outer diameter |
Weight/m2 |
| XY-SS-053 |
Weld |
stainless steel |
0.53mm |
3.81mm |
3.2kgs |
| XY-SS-080 |
Weld |
stainless steel |
0.80mm |
7.00mm |
2.8kgs |
| XY-SS-150 |
Weld |
stainless steel |
1.50mm |
15.00mm |
4.8kgs |
| XY-CS-150 |
Weld |
Copper/brass |
1.50mm |
15.00mm |
5.5kgs |
| XY-SS-200 |
Weld |
stainless steel |
2.0mm |
20.00mm |
6.8kgs |
| XY-CS-200 |
Weld |
Copper/brass |
2.0mm |
20.00mm |
7.8kgs |
| XY-SS-100 |
Non-welding |
Stainless steel |
1.0mm |
8.00mm |
4.7kgs |
| XY-MS-100 |
Non-welding |
Mild steel |
1.0mm |
8.00mm |
4.6kgs |
| XY-SS-120 |
Non-welding |
Stainless steel |
1.2mm |
10mm |
4.8kgs |
| XY-CS-120 |
Non-welding |
Mild steel |
1.2mm |
10mm |
5.5kgs |
| XY-SS-150 |
Non-welding |
Stainless steel |
1.5mm |
15mm |
4.8kgs |
| XY-CO-150 |
Non-welding |
Mild steel |
1.5mm |
15mm |
5.5kgs |
| XY-SS-200 |
Non-welding |
Stainless steel |
2.0mm |
20mm |
6.8kgs |
| XY-CO-200 |
Non-welding |
Mild steel |
2.0mm |
20mm |
7.8kgs |
Chain Mail Curtain Introduction:
|
|
Material
Our ring mesh curtain is made of carbon steel, stainless steel ,brass copper and other materials |
Shape
it mainly includes flat ring types mesh curtain ,circle types ring curtains and big small circle ring cross curtain |
 |
|
|
performance
the ring mesh curtains feature versatility,unique decorative sffect ,unique texture,varius colors,durability and flexibility
|
Chain Mail Curtain advantage :
1.wonderful corrosion resistance
2.concise and generous, has strong modern sense
3.high strength ,strong and durable
4.convient for packing and transporation
5.with high flexibility ,easy to install and design
6.easy to maintain ,and low maintenance costs
Application Of Chain Mail Curtain:
A.Decorative Ring Mesh Drapery has stainless steel decorative mesh and aluminum alloy, copper wire
spiral curtain, steel plate aluminum mesh plate decorative mesh, metal bead curtain, rope decorative net,
stencil decorative net and so on.
· B.Unique fashionable metal ring mesh drapery has the characteristics of solemnity, generosity and good
three-dimensional effect. It is more attractive under the illumination of the light. It is an ideal decorative
material for modern hotels, restaurants and exhibition halls.
· C.Stainless Steel Metal ring mesh window drapery is a combination of a plurality of aluminum mesh
sheets. The main shapes of the mesh are flat, round beads, plum and diamond. Widely used in hotels,
cafes, concert halls, hotels, window decoration and other screen cut ceilings, etc.
Packing Of Chain Mail Curtain:
plastic foam and carton box for inner packing
Fumigated wooden cases for outer packing also can be as the request
Sample:by DHL/EMS/UPS/TNT/EXPRESS ect
Delivery time :20 days after confirm the order
Large order :we recommand you by SEA .or by AIR if in an emergency
HUIHAO Company Advantages:
1.pattern design support according to the application
2.frame design support according to the installation
3.surface treatment support ,inclode to the installation
4.supply install accessories ,include PVDF,PVD Spraying
5.Material:stainless steel ,copper ,bronze ,brass ,aluminum ,aluminum alloy ,ect
6.Weave type :Plain weave,twill weave ,dutch weave ,plain dutch weave ,twill weave ,uinque woven method,ect
7.ISO9001-2008 Quality certification management system
Product Tags:
|
|

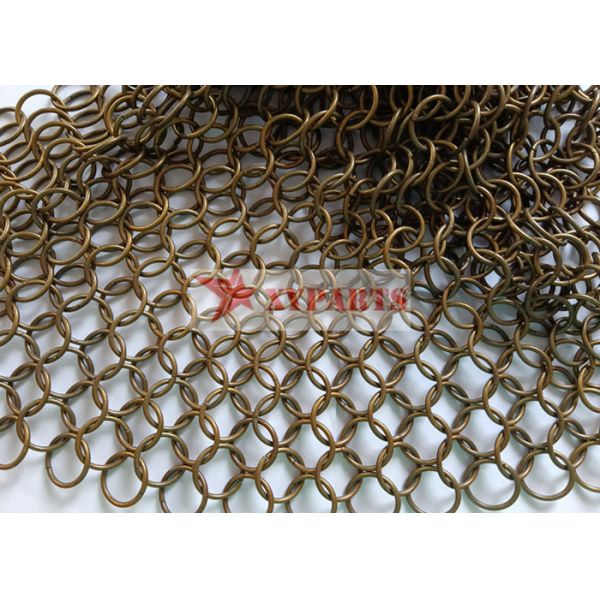

Durability And Flexibility Chain Mail Curtain In Architectural Design Images
|
