Stainless Steel 7/8" Diameter Lacing Hook Washers With Two Holes
Description Of The Stainless Steel Lacing Hooks
1: Stainless Steel Lacing Hooks are 7/8” diameter standard
2: Stainless Steel Lacing Hooks are with two 3/16″ diameter holes, 1/2″ apart
2: Stainless Steel Lacing Hooks are stamped NO AB to indicate non-asbestos material.
|
Material
|
Size
|
Hook
|
Thickness
|
Hole Size
|
|
stainless steel
|
22mm, 25mm
|
5mmx11mm
|
1mm
|
5mm
|
|
galvanized steel
|
22mm,25mm
|
5mmx11mm
|
1mm
|
5mm
|
1.we accept OEM orders, and supply pattern design, surface treatment and project advices
2. good hold power, go through with non-return
3.suitable installation parts include: lacing anchor pins,lacing washer, lacing wire and lacing
rings (O type and D types)
| Parts |
lacing anchor pins |
lacing washers |
lacing wires |
lacing O rings |
lacing D rings |
| Material |
SS/MS |
SS.MS |
SS.MS |
SS |
SS |
| Size |
63.5MM |
25MM |
2MM |
30MM |
20MMX30MM |
 |
 |
|
Name: Lacing anchor pins
Diameter: 2mm, 2.7mm
Length: 63.5mm, 114mm
|
Name: Lacing washers
Diameter: 25mm or 30mm
Thickness: 1mm
|
 |
 |
|
Name: Lacing O rings
Material: stainless steel
Technical: weld or not
Size: 30mm
|
Name: Lacing D rings
Material: stainless steel
Technical: weld or not
Size: 25x30mm
|
How To Secure Insulation Blankets With Stainless Steel Lacing Hooks
The Lacing hooks are used for securing and tying removable insulation blankets, work in with
lacing washers to fasten the insulation. Install the lacing hook with wire, secure with lacing
washer, use lacing wire to fasten the insulation by through the lacing hooks.
 |
 |
 |
|

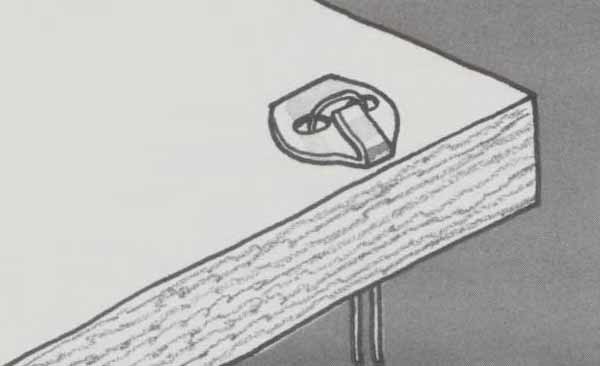

1. install lacing hook with lacing wire
|

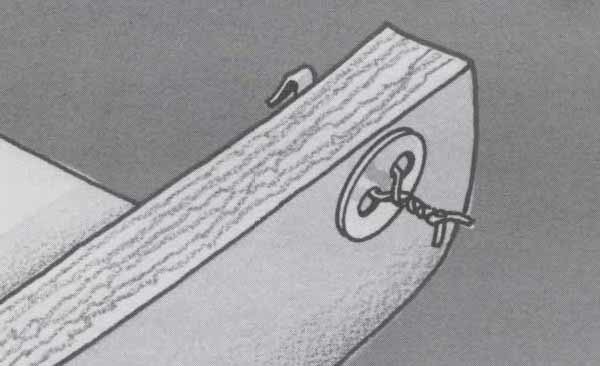

2. secure with lacing washer
|

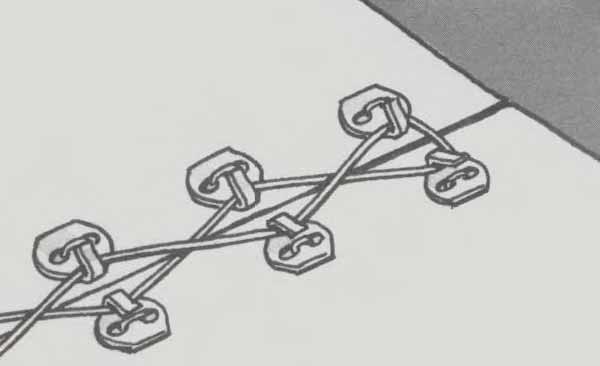

3. secure installation by lacing wires through hooks
|
Application Of The Stainless Steel Lacing Hooks
|
stainless steel material lacing hook washers are wildy used for fixing:
|
-
exhaust insulation blankets
-
fabric expansion joints
-
temptec exhaust blankets
-
mat insulation
-
thermal insulation covers
-
cooling insulation covers
-
heat insulatiuon covers
|
-
freeze protection cover
-
removable insulation covers
-
tank insulation cover
-
flanhe leak insulation covers
-
offshore production cover
-
heat-shield insulation blankets
-
removable insulation jacket
|
Package Details Of The Metal Lacing Hook Washers
|
qty / pp bag
|
qty / carton
|
carton size
|
weight / carton
|
|
1000 pcs
|
7 pp bags
|
41cm x28cm x17cm
|
21.5kgs
|
|
accept custom
|
accept custom
|
custom is acceptable
|
|
