65mm Length Capacotor Discharge Bimetallic Insulation Stick Pins With Aluminum Weld Base

Product Categories
Anping Huihao Hardware Trading Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

65mm Length Capacotor Discharge Bimetallic Insulation Stick Pins With Aluminum Weld Base

MOQ : 10,000 pcs

Pin material : galvanized ,stainless steel ,aluminum

Pin diameter : 2.7mm,3.0mm

Model Number : Insulation Bimetallic Pins

Delivery Time : within 15 days after confirm the order

Packaging Details : 1.300pcs/500 pcs /1000 pcs in one plastc bag 2.in carton

Base size : 6x15mm in common

Supply Ability : 200.000 pcs per month

Certificate : ISO2009-2015

Pin length : 25-250mm

Certification : ISO9001-2015

Accessories : Dome cap washer ,self-locking washer

Place of Origin : HEBEI

Base material : alloy aluminum

Product name : Insulation Bimetallic Pins

Payment Terms : L/C, T/T, Western Union, MoneyGram

Brand Name : XIANGYI

Contact Now


65mm Length Capacotor Discharge Insulation Bimetallic Pins With Aluminum Weld Base

Quick Details Of Insulation Bimetallic Pins :
Product Name :Insulation bimetallci pins
Base matrerial :aluminum 5000 series
Base size :6mmx15mm in common
Pin material :stainless steel ,galvanized steel ,aluminum
Pin diameter :2.7mm,3.0mm,3.4mm
Pin length :25mm-250mm
Accessories :dome cap washer ,3 slots washer
all washer are available in a variety of sizes ,shapes and material
Usage :marine build

Insulation Bimetallic Pins Specification:

common size of
BI-Metallic Pin diameter base size length
2.7mm 8x11 38 - 280mm
3mm 8x11 38 - 280mm
3.4mm 8x11 38 - 380mm
Metal Weld Base Bimetallic Insulation Pins MATERIAL STANDARD OF MATERIAL
Low Carbon Mild Steel 4.8 (weldable) EN 20898-1
Stainless Steel A2-50 (weldable) EN ISO 3506-3
Aluminium Alloy AlMg3 EN 573-3
Pure Aluminium EN 573-3
Lead Free Brass 4.8 (weldable) ISO 426 –1 / ISO 1638

Feature of Insulation Bimetallic Pins :

features of the Insulation Bimetallic Pins
BETTER PLATING weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.
REDUCED DOWN TIME Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

Package of Insulation Bimetallic Pins :

Material of the shaft Material fo the head Length of the head Total length Packing of the Bi-metallic pins
Stainless steel Aluminum 15mm in common 35mm 400pcs/bag,10bags/carton
Stainless steel Aluminum 15mm in common 45mm 350pcs/bag,10bags/carton
Stainless steel Aluminum 15mm in common 55mm 300pcs/bag,10bags/carton
Stainless steel Aluminum 15mm in common 65mm 250pcs/bag,10bags/carton
Stainless steel Aluminum 15mm in common 80mm 200pcs/bag,10bags/carton
Stainless steel Aluminum 15mm in common 95mm 150pcs/bag,10bags/carton

Accessories of Insulation Bimetallic Pins :

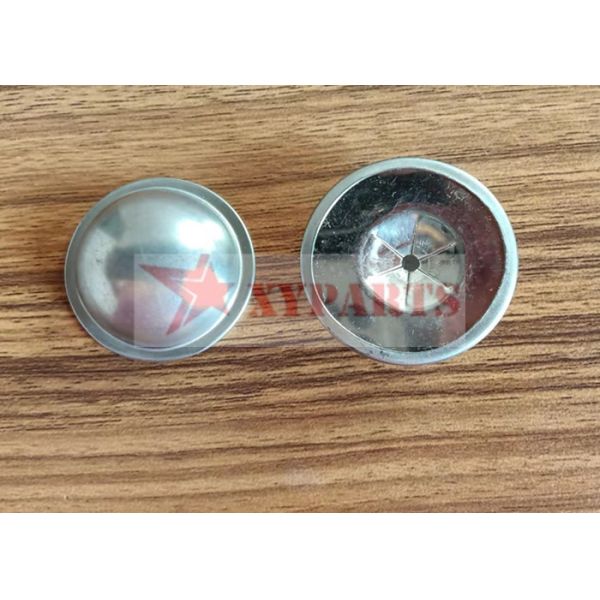

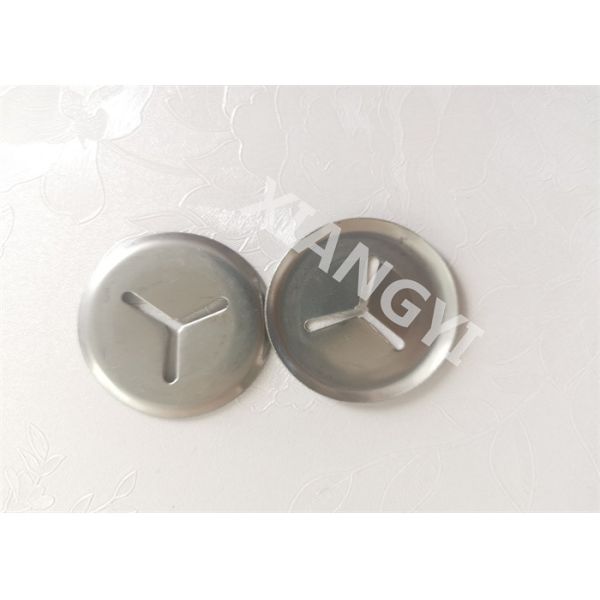

Dome cap washer self-locking washer

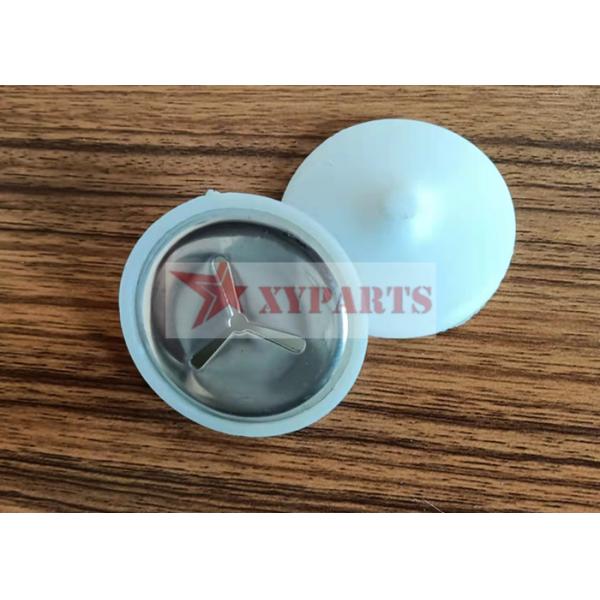

metal cap+clips plastic cap +clips 3 slots washer
65mm Length Capacotor Discharge Bimetallic Insulation Stick Pins With Aluminum Weld Base 65mm Length Capacotor Discharge Bimetallic Insulation Stick Pins With Aluminum Weld Base 65mm Length Capacotor Discharge Bimetallic Insulation Stick Pins With Aluminum Weld Base


XY PARTS Company introuduce:

Hebei Xiangyi metal products company is a insulation fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.

65mm Length Capacotor Discharge Bimetallic Insulation Stick Pins With Aluminum Weld Base
