Removable Blanket Insulation Anchor Pins With Round Self-Locking Washer
Quick details of removable blanket insulation anchor pins:
| Product name |
Insulation Anchor Pins |
| Pin size |
Length: 12GA or 14 GA |
| Diameter: 1-1/2”,2-1/2”,3-1/2”,4-1/2”,5-1/2” |
| Material |
Pin: Mild Steel, Stainless steel |
| Base: Mild Steel, Stainless steel |
| Surface treatment |
Stainless steel:polishing,passivation |
| Mild steel: Galvanized plating |
| Product features |
Firm conjunction between bases and pins |
| Pins are soft, easy bending over |
| Sharp points,easy going through any insulation blankets |
| Production workmanship |
Automated production |
| Packing |
Packing can be customized as per requirements
|
| Supply capability |
350000 sets per month |
| Installation accessories |
Self-locking washer ,D type ring |
| Application |
used in the fabrication of insulation blankets or removable covers/pads |
| Remark |
Technical parameters are available upon request |
Specification of removable blanket insulation anchor pins:
Lacing Anchors are used in the fabrication of insulation blankets or removable covers/pads. The nail
is pressed through the insulation material, so the hook portion sits on the top edge and the nail is
secured on the opposite side of the insulation with a washer. The two sides of the blanket can then
be "laced" together by the hooks with tie wire.
• Mild steel pins are galvanized; Tops are zinc plated
• All mild steel pins are fully annealed. (unless otherwise specified)
• Standard lacing anchor—round top.
• All required accessories also available:
• 2-Hole lacing washers available
• 2-Hole Lacing Top
• Lacing Rings
• D-rings
• Lacing Wire
• Wire Mesh

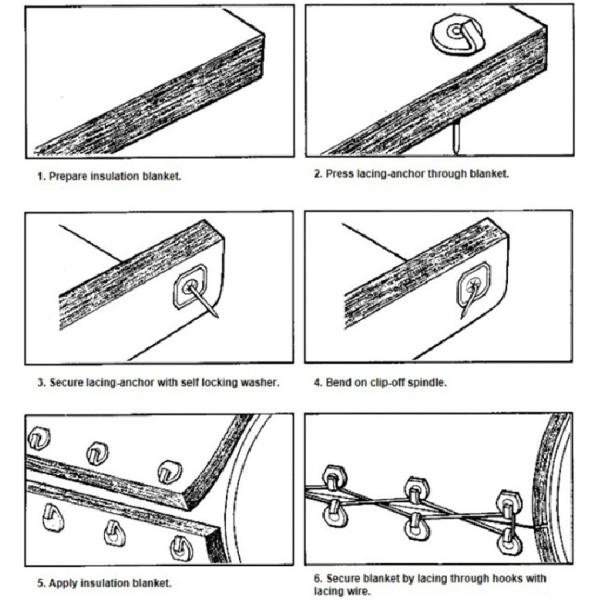

How to install removable blanket insulation anchor pins:
1. prepare the insulation blanket or removable cover
2. press the lacing anchor through the insulation
3. press the self locking washer into the pin to fasten the insulation
4. bend over or clip off the pin
5. install the insulation blanket or removable cover
6. Lace the hook by lacing tie in order to fasten the insulation.
Application of removable blanket insulation anchor pins:
Glass wool *rock wool polysyren*PU panels*Foam glass*Lighting building boards made of wood wool*
Coir matting *Cork boards
How to choose suitable pin length for fixing insulation material ?
=38mm insulation pin fixing for 15mm-25mm insulation materials
=63mm insulation pin fixing for 25mm-45mm insulation materials
=90mm insulation pin fixing for 45mm-70mm insulation materials
=110mm insulation pin fixing for 40mm--70mm insulation board
=145mm insulation anchors for 75mm-105mm insulation slabs
=170mm fireproof fixing for 105-130mm insulation panels
=200mm metal fasteners for 135mm-160mm insulation boards
